Special Screw Fixings

High-grip screw fixings with flat or raised heads, designed to secure acrylic and glass panels directly to the wall while keeping a clean architectural look.

Overview

Special Screw Fixings use a reinforced screw with a thicker front section to anchor firmly into the wall. The decorative cap and body are machined from metal and finished in various colours, providing both holding strength and a neat appearance for single-panel signage.

Key Features

  • High-grip special screw – not a standard wood screw – for improved pull-out resistance.
  • Available with flat head or raised head cap depending on the design style required.
  • Metal finishes such as Satin Silver, Chrome, Gold, Black and optional colours.
  • Simple installation: screw to the wall, then fit the body and cap to cover the fixing.
  • Suitable for acrylic, glass and metal panels used in interior signage.

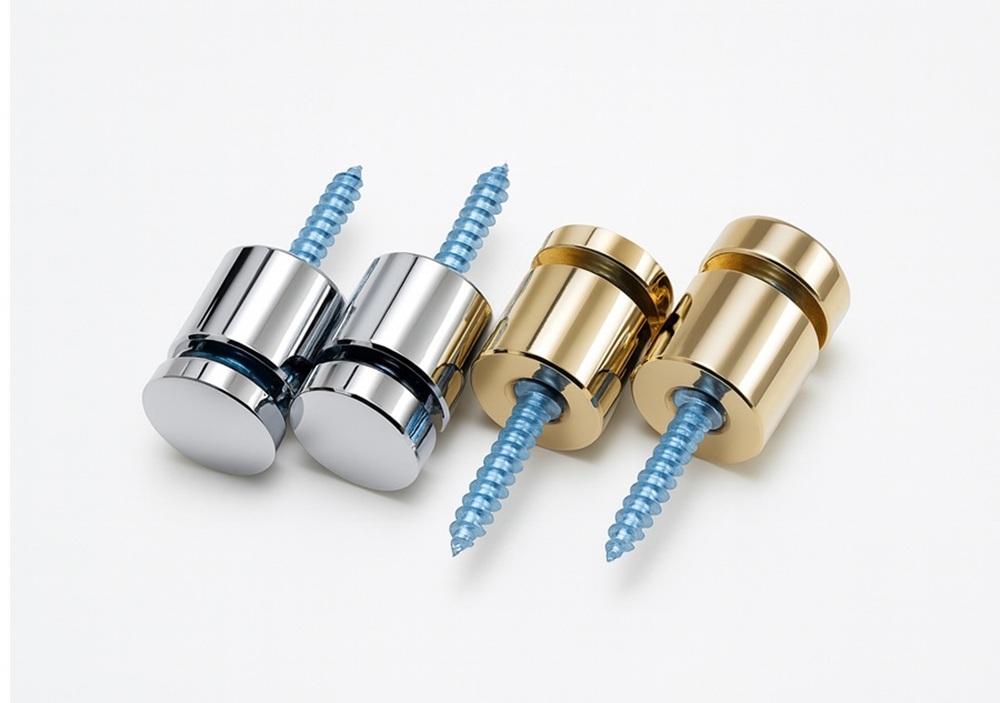

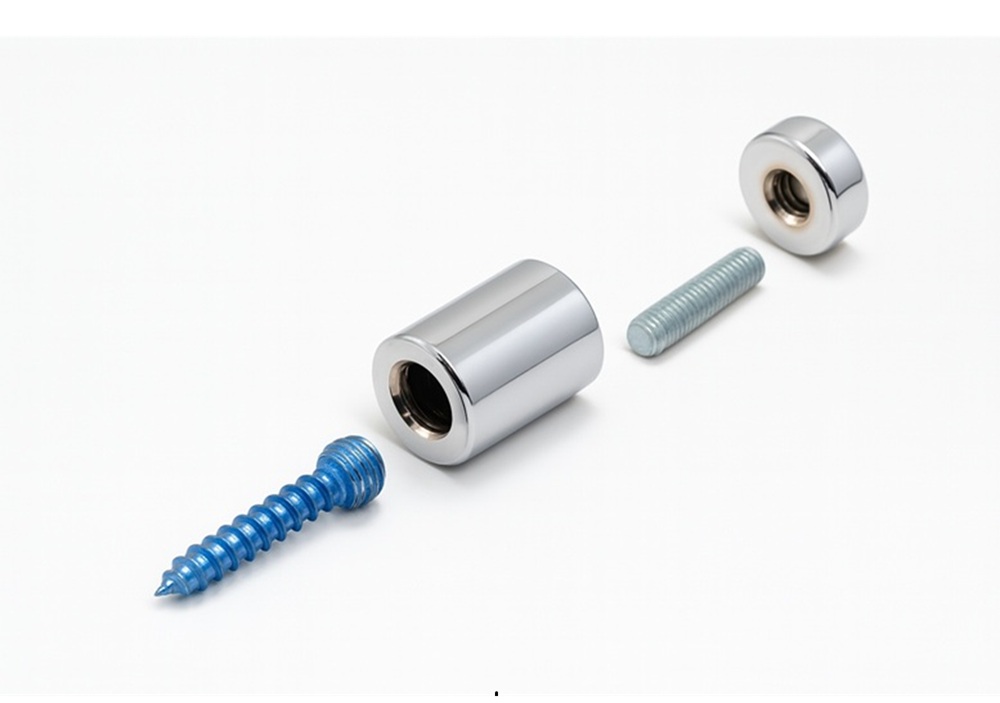

Special screw fixings in chrome and gold finishes Exploded view of special screw fixing components

SSF – Flat Head Type

Flat head cap for a simple, modern look. Designed for single-panel support using the special screw and metal body.

Typical sizes: 12 × 7 × 20 mm, 15 × 7 × 20 mm (a × b × c).

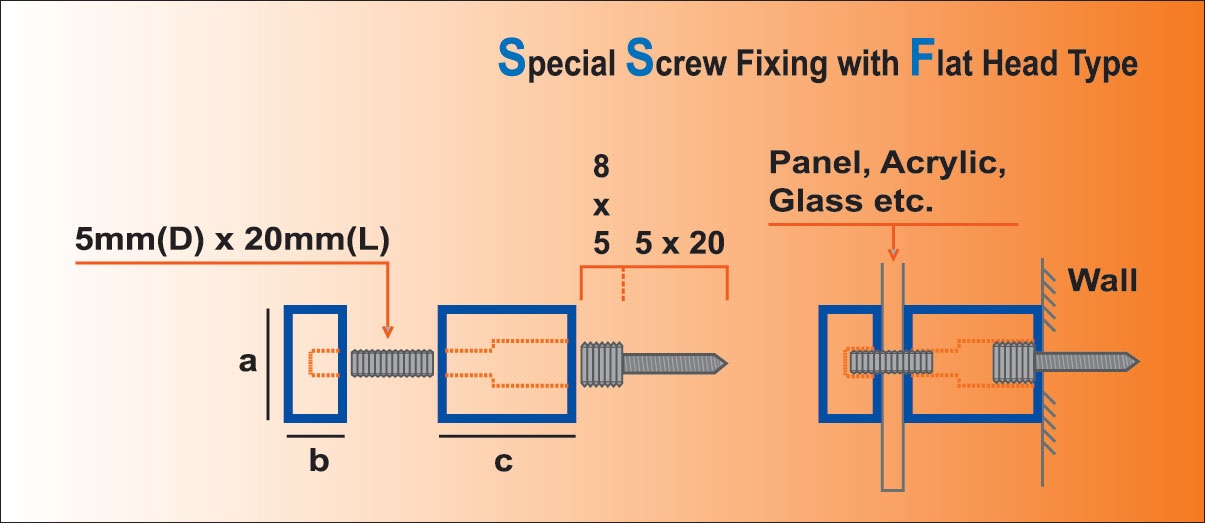

Structure diagram of Special Screw Fixing flat head type

SSR – Raised Head Type

Raised head cap that adds a bit more presence on the panel while using the same special screw anchoring structure.

Typical sizes: 12 × 7 × 20 mm, 15 × 7 × 20 mm (a × b × c).

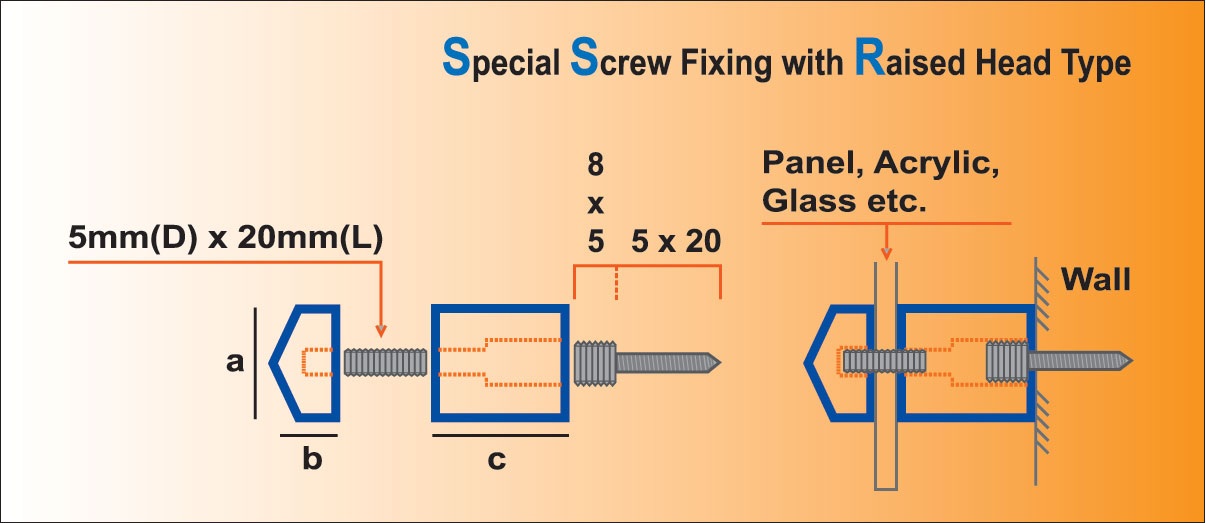

Structure diagram of Special Screw Fixing raised head type

Inquiry for this product

Please tell us panel thickness, required head type (flat or raised), diameter, length, finish and quantity. We will recommend suitable models and send quotations.
